Description

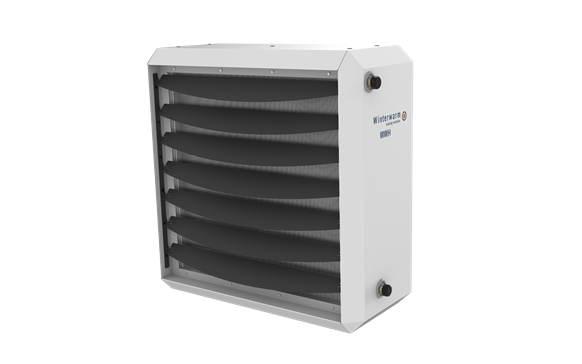

The WWH 350 is a water heater with a capacity of 48.2 kW at a water temperature of 90°/70°C. One of the largest units in the Winterwarm WWH range. The heat exchanger is a combination of copper tubes and aluminium fins which ensures optimum heat transfer.

It can be applied in different types of buildings like showrooms, workshops, warehouses etc.

Features

  • horizontal or vertical air discharge
  • extra louvres available
  • 4-way down flow plenum for suspended ceilings
  • on/off thermostat control
  • 5-step switch regulates air volume (optional)
  • suitable for all water temperatures (not steam)
  • Technical features

    Heat emission 0kW - 48.2kW
    Air volume 0m³/h - 6600m³/h
    Max. throw horizontal 20m
    Max. throw vertical 7m
    Connection voltage 230V - 230V
    Number of phases 1
    Nominal current 2A
    Max. electric power input 450W
    Adjustable fins on exhaust side Yes
    Material heat exchanger Aluminium/copper
    Fan type Axial
    Sound pressure level at height of 5 metres 0dB(A) - 62dB(A)
    Height 834mm
    Width 834mm
    Depth 530mm
    Nominal diameter 1 inch (25)
    Water-side resistance at dT 20 °C 4kPa
    Max. operating pressure 500kPa
    Water content 2.2l
    Weight including filling 44kg

    Images

    Accessories

    Controls
    Suspension
    Other
    • GA380WW
      Plenum 4 directions 350/365/380 WWH
      Article number GA380WW
      More information
    • GAIN380GRY
      Vertical louvre WWH 330-350-365-380-380, grey 83 cm
      Article number GAIN380GRY
      More information

    Service parts

    View our service parts for the WWH 350 (and earlier models) in the parts shop.

    Parts shop

    Winterwarm WWH-series

    The Winterwarm WWH range are LPHW heaters which, combined with any type of hot water system, can comfortably heat up any room.
