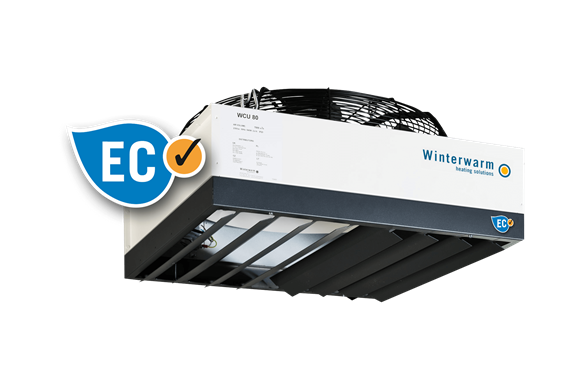

WCU EC

Winterwarm air-circulation units ensure good heat distribution and optimise the use of the heated air with minimal energy consumption and a high level of comfort.

  • Energy saving
  • Low electricity consumption
  • Increased comfort by stepless control
  • Low noise level
  • Reduced heat loss
WCU EC

Winterwarm air-circulation units ensure good heat distribution and optimise the use of the heated air with minimal energy consumption and a high level of comfort.

  • Energy saving
  • Low electricity consumption
  • Increased comfort by stepless control
  • Low noise level
  • Reduced heat loss

Description

New large buildings are well insulated and the required heating capacity is becoming increasingly less. Especially in these well insulated buildings it is crucial to have a low stratification of the air (temperature difference between ceiling and floor). The lower the difference the less the energy loss of the building and the lower the energy bill for the heating.

The WCU-EC series is the solution to achieve the minimum of destratification. WCU-EC units are controlled independently of the air heaters and have a built-in thermostat.



Energy saving with a double effect

Every WCU-EC unit is fitted with a thermostat which ensures that warm air from the ceiling will be pushed to floor level. In general WCU-EC units can save easily approx. 30% of the energy used for heating. Additionally the electricity consumption of the EC fan itself is about 25% electricity less compared to the standard WCU units. The EC fan allows the unit to be controlled by a stepless 0-10 Volt controller. Besides that, the WCU-EC is low noise.

Features

  • improved recirculation of the warm air
  • reduces temperature gradient
  • low noise level
  • extra air circulation in summer
  • 4 models suitable for heights from 5m. to 15m.
  • “Plug and play"
  • built-in thermostat
  • stepless 0-10 V. fan control
  • simple suspension from chains

Downloads

Product range

WCU EC 40

Recirculation unit with EC-fan motor, 3300 m3/h

More information

WCU EC 60

Recirculation unit with EC-fan motor, 5700 m3/h

More information

WCU EC 80

Recirculation unit with EC-fan motor, 7000 m3/h

More information

WCU EC 100

Recirculation unit with EC-fan motor, 10,000 m3/h

More information
