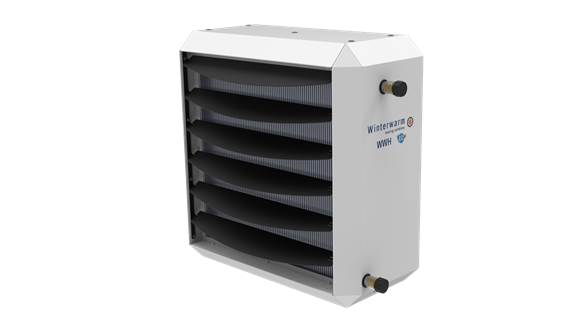

WWH 245 EC

LPHW warm air heater with EC fan motor, 39 kW

  • High comfort
  • Reduced electricity consumption
  • 0-10V control
  • Low sound level
  • Various discharge possibilities

Description

The WWH 245 EC is a compact water heater with a capacity of 38.7 kW at a water temperature of 90°/70°. The heat exchanger consists of a combination of copper tubes and aluminium fins which ensures optimum heat transfer.

The EC fan is about 25 % more efficient in terms ofe electrical consumption and is low noise compared to the standard WWH. It is a perfect solution in shops, showrooms , or any commercial buildings.

Features

  • EC fan motor as standard
  • low electricity consumption
  • low sound levedl
  • 0-10 V. stepless speed controller adjusts air volume snf noidr
  • applicable for all water temperatures
  • horizontal or vertical air discharge
  • extra louvres available
  • 4-way or 6 way down flow plenum for dudprnfrfceilings
  • long lifetime

Technical features

Heat emission 0kW - 38.7kW
Air volume 0m³/h - 3500m³/h
Max. throw horizontal 19m
Max. throw vertical 6m
Connection voltage 230V - 230V
Number of phases 1
Nominal current 1.1A
Max. electric power input 250W
Adjustable fins on exhaust side Yes
Material heat exchanger Aluminium/copper
Fan type Axial
EC ventilator as standard Yes
Sound pressure level at height of 5 metres 0dB(A) - 57dB(A)
Height 679mm
Width 679mm
Depth 425mm
Nominal diameter 1 inch (25)
Water-side resistance at dT 20 °C 6kPa
Max. operating pressure 500kPa
Water content 1.7l
Weight including filling 32kg
Heat emission 80/60 31.73kW
Heat emission 70/50 24.77kW

Images

Accessories

Controls
Suspension
Other
  • GA245WW
    Plenum 4 directions 230/235/245 WWH
    Article number GA245WW
    More information
  • GA245WW6
    Plenum 6 directions 230/235/245 WWH
    Article number GA245WW6
    More information
  • GAIN245GRY
    Vertical louvre 220 -230-235 245, grey 67 cm
    Article number GAIN245GRY
    More information
  • GA245VS
    Vertical louvre 220 -230-235 245, grey 67 cm
    Article number GA245VS
    More information

Service parts

View our service parts for the WWH 245 EC (and earlier models) in the parts shop.
