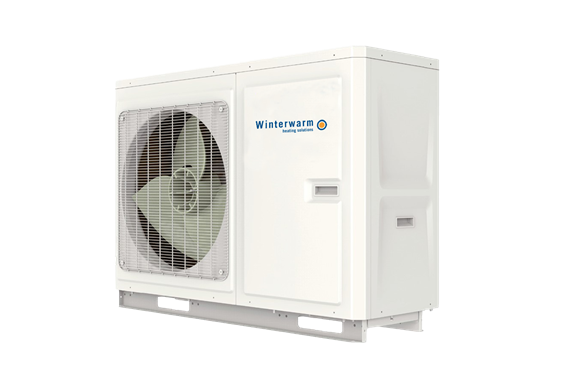

HPX 06

Monobloc heat pump, 6 kW

  • High COP score: >5
  • Energy class A***
  • Air/water heat pump
  • Environment friendly refrigerant
  • DC-fan
HPX 06

Monobloc heat pump, 6 kW

  • High COP score: >5
  • Energy class A***
  • Air/water heat pump
  • Environment friendly refrigerant
  • DC-fan

Description

The Winterwarm HPX 06 is a heat pump with a heating capacity of 6 kW (at 7°/35°C) and a cooling capacity of 6,5 kW (at 35°/18°C). The appliance can be placed on the roof or be suspended on the wall. For this last option Winterwarm has fitting brackets available.

The HPX 06 can be applied in combination with the Qwikshift QSE and QSG. In the inside unit a water coil is located as the heat release system ánd a heat booster (electric or gas fired). The latter "helps" the heat pump at the coldest moments of the year to reach the set temperature.

The HPX 06 can also applied in combination with water heaters type WWH-LT.

Features

  • Built-in circulation pump
  • Internal expansion tank
  • Refrigerant R32
  • Modulating compressor
  • Water circulation filter included

Technical features

Heating capacity at 7/35 °C according to EN 14511 6kW
COP at 7/35 °C according to EN 14511 5.4
Cooling performance at 35/18 °C according to EN 14511 6.5kW - 6.5kW
Type of refrigerant R32
Refrigerant pre-charge 0.95kg
Connection voltage 230V - 230V
Number of phases 1
Frequency 50 Hz
Weight 90kg
Sound level (in operation) 0dB(A) - 58dB(A)
External pressure system pump available at nominal flow 0.8bar
Air temperature -25°C - 35°C
Nominal volume flow rate output system 0.31l/s
Degree of protection (IP) IPX4

Images

Accessories

Aansturingen
Ophangingen
Overig

Service parts

View our service parts for the HPX 06 (and earlier models) in the parts shop.
