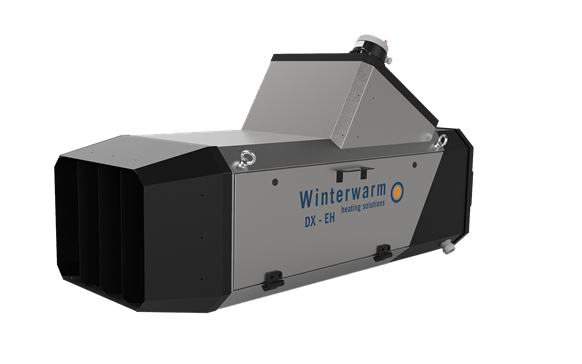

DX-EH 40

Electric heater, 40 kW

  • Full electric
  • No CO2 emission
  • 100% efficiency
  • Low ammonia emissions
  • Sustainable choice
DX-EH 40

Electric heater, 40 kW

  • Full electric
  • No CO2 emission
  • 100% efficiency
  • Low ammonia emissions
  • Sustainable choice

Description

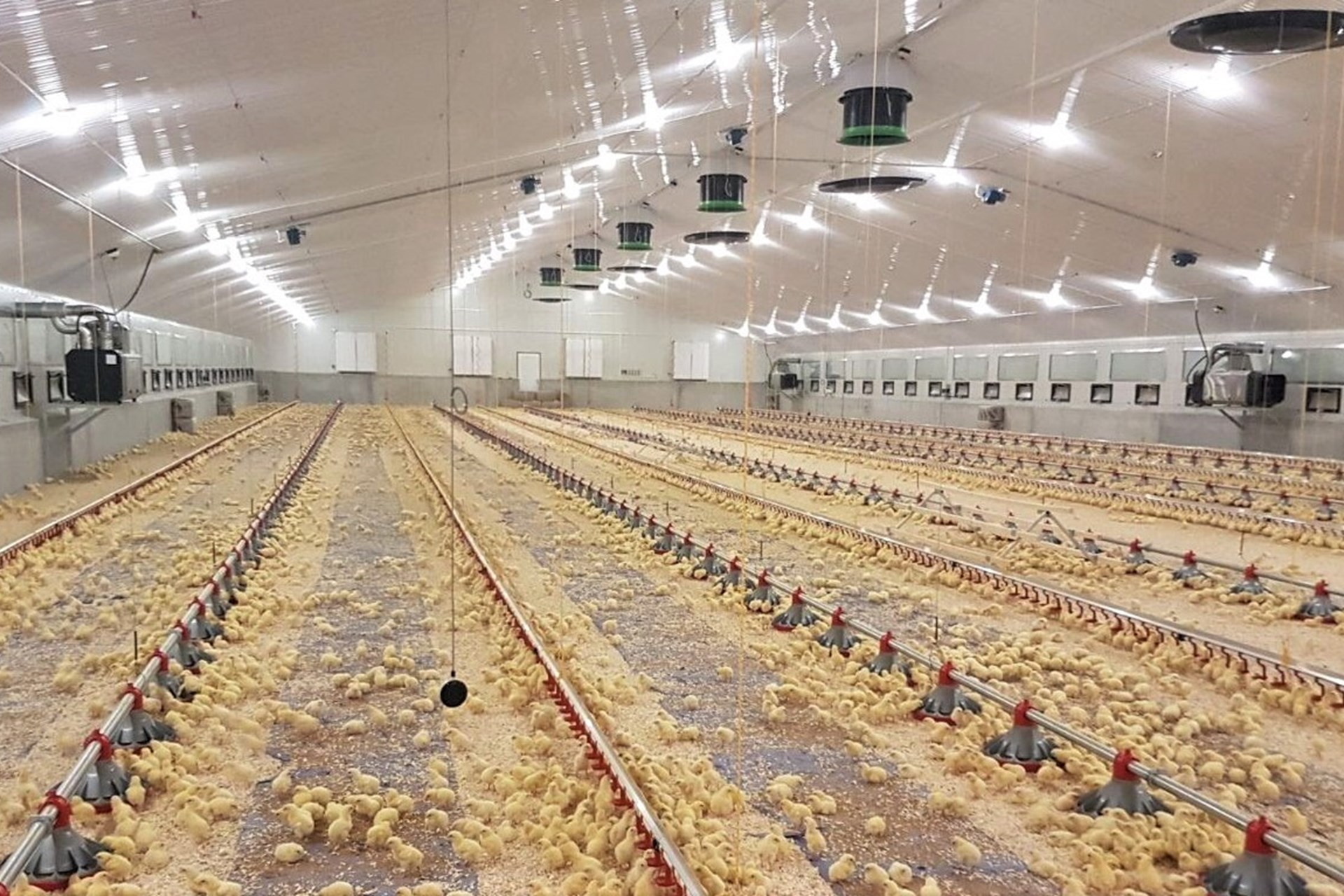

The DX-EH 40 can perfectly provide for the heating of the poultry house or pigstie for about 80% of the time. It's efficiency of 100% means that 40 kW electricity goes in and 40 kW of heating capacity goes out. The strong fan takes care of a good distribution of the heat in the stable. Small chickens spread evenly throughout the stable and piglets are feeling very comfortable. For support during the coldest hours  a gas fired DXC heater can be installed. A combination of both heaters also offers the possibility to change the heating method depending on the energy prices of electricity or gas at a particular moment.

The DX-EH heater is cleaned easily after each round while the box with all electronic components is splash-free. The inside of the heater is easily accessible for a vacuum cleaner.

To improve the distribution of the warm air DXF fans can be installed.



Features

  • stainless steel casing
  • splasproof IPX4D
  • maintenance friendly
  • failure and reset button
  • on/off control as standard
  • option: 0-10 V analogue input or Modbus control
  • option: high/low output
  • 4x suspension points

Technical features

Power 39600W
Motor power 370W
Connection voltage 3 x 400 V
Fan type Axial
Air volume 0m³/h - 3500m³/h
Width 1400mm
Height 795mm
Depth 550mm

Images

Accessories

Aansturingen
Ophangingen
Overig

Service parts

View our service parts for the DX-EH 40 (and earlier models) in the parts shop.

Parts shop

DX-EH heater

The Winterwarm DX-EH is an electric air heater for sustainable heating of poultry houses and pigsties.

All Winterwarm DX-EH types
