Recirculation unit with EC-fan motor, 7000 m3/h
- Energy saving
- Low electricity consumption
- Increased comfort by stepless control
- Low noise level
- Reduced heat loss

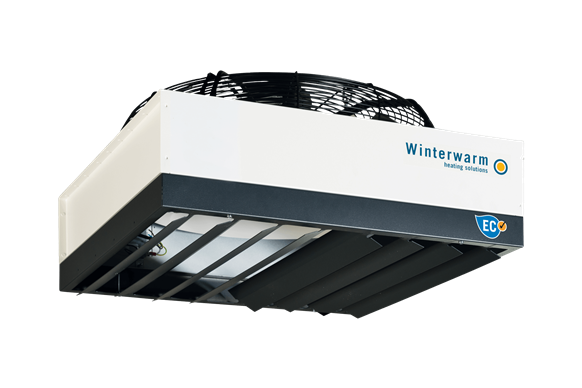

The WCU-EC 80 is a compact destratification unit with a rectangular casing and fan for buildings maximum height of 12 meter. All WCU units have a adjustable grill in order to guide the air flow. In warehouses it is recommended to place these units between the racks in order to have a free flow of air.
Air volume adjustable
All WCU-EC destratification units have adjustable louvres to guide the air in the desired direction. The volume can be controlled stepless by 0-10 Volt controller. The WCU- EC units are low noise.
- suitable for 8 to 12m height
- adjustable louvres
- “Plug and play"
- built-in thermostat 230 V.
- stepless 0-10 V. fan control (optional)
- simple suspension from chains
|Air volume, unloaded||7000m³/h|
|Throw vertical||8 - 12|
|Connection voltage||230V - 230V|
|With thermal overload protection||No|
|Degree of protection (IP)||IP30|
|Pendant length||0mm - 0mm|
|Height||600mm - 600mm|
Room thermostat on/off for EC
Article number IW3961
Speed controler 0-10 Volt
Article number GA3955
Suspension set WCU
Article number GA8570
View our service parts for the WCU 80 EC (and earlier models) in the parts shop.Parts shop
Winterwarm WCU EC-range
Winterwarm air-circulation units ensure good heat distribution and optimise the use of the heated air with minimal energy consumption and a high level of comfort.All Winterwarm WCU_EC types
