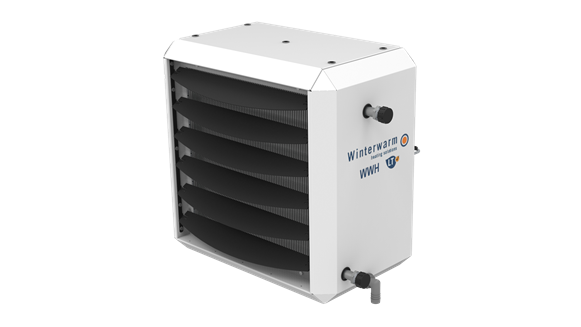

WWH 110 LT

LPHW warm air heater for low water temperatures, 10 kW

  • Optimal heat generation at low temperatures
  • High comfort
  • Stepless control
  • Low electricity consumption
  • Cooling option using heat pump
WWH 110 LT

LPHW warm air heater for low water temperatures, 10 kW

  • Optimal heat generation at low temperatures
  • High comfort
  • Stepless control
  • Low electricity consumption
  • Cooling option using heat pump

Description

The WWH 110 LT is a compact water heater with a heating capacity of 8.3 kW at a water temperature of 45°/35°. In cooling mode the capacity is 6.6 kW at a water temperature of 7°/12°C.

The EC fan technology saves approx. 25% of the electric consumption and is low noise. A prefect sustainable solution in many buildings.

Features

  • EC fan as standard
  • low noise level
  • control with stepless 0-10 V. speed controller or on/off
  • suitable for all water temperatures
  • heat output 8.3 to 23.8 kW depending on flow/return water temperature
  • cooling capacity between 6.6 kW to 3.4 kW depending on flow/return water temperature
  • 4-way or 6-way down flow plenum for built-in prefabricated ceilings (no cooling possible)

Technical features

Heat emission 0kW - 23.8kW
Air volume 0m³/h - 1850m³/h
Max. throw horizontal 14m
Max. throw vertical 5m
Connection voltage 230V - 230V
Number of phases 1
Nominal current 1.1A
Max. electric power input 118W
Adjustable fins on exhaust side Yes
Material heat exchanger Aluminium/copper
Fan type Axial
EC ventilator as standard Yes
Sound pressure level at height of 5 metres 0dB(A) - 54dB(A)
Height 505mm
Width 505mm
Depth 380mm
Nominal diameter 3/4 inch (20)
Water-side resistance at dT 20 °C 4kPa
Max. operating pressure 500kPa
Water content 2l
Weight including filling 22kg
Heat emission 50/40 10.38kW
Heat emission 45/35 8.3kW
Cooling capacity 7/12 6.6kW
