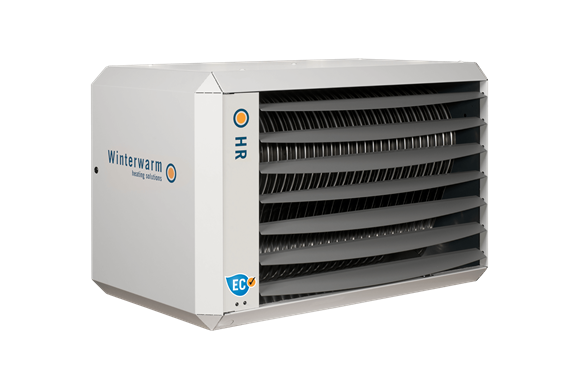

HR 60 EC

High effiency gas-fired warm air heater with EC fan, 60 kW

  • Most environmentally-friendly heater
  • High efficiency
  • Economical and quiet EC fan
  • Modulating burner and fan
  • 10 years warranty on heat exchanger
HR 60 EC

High effiency gas-fired warm air heater with EC fan, 60 kW

  • Most environmentally-friendly heater
  • High efficiency
  • Economical and quiet EC fan
  • Modulating burner and fan
  • 10 years warranty on heat exchanger

Description

The HR 60-EC is a compact condensing air heater with low noise EC Fan. The unit has a capacity of 60 kW and an efficiency of approx. 106%. Both the pre-mix burner and system fan can modulate back to 30%. In combination with the Multitherm thermostat, this ensures an even room temperature.

More options
The HR 60-EC is suitable for natural gas or propane gas.
It is also possible to mount the unit up to an angle of 45 degrees. Together with the louvres, it is then possible to blow warm air vertically.
The HR 60 EC is low noise, has an attractive design and ideally suited to installation in shops and any other commercial buildings.



Features

  • modulating burner- and fan control for more comfort
  • delta-T control optimizes gas consumption
  • quiet and efficient EC fan as standard
  • low electricity consumption li>
  • compact and modern design
  • tilt-mounted option - V-model (improved vertical heat distribution)
  • suspension on ceiling or wall, by consoles or by threaded bar
  • natural gas or propane
  • supplied including siphon
  • suitable for all kinds of premises

Technical features

Nominal power 58kW
Nominal load lower value 60kW
Efficiency 106%
Air volume 4000m³/h - 6700m³/h
Max. throw horizontal 30m
Max. throw vertical 0m
Supply voltage 230V
Nominal current 2.5A
Max. electric power input 500W
Max. sound level (at a distance of 4 metres) 64dB(A)
Heat exchanger material Stainless steel
Closed version Yes
Burner controller high/low No
Burner controller, modulating Yes
Control signal on/off Yes
Control signal 0-10 V No
Fan type Axial
Degree of protection (IP) IP00B
Height 670mm
Width 1065mm
Depth 775mm
Weight 110kg
Min. mounting height (horizontal air distribution) 1.7m
Outer pipe diameter of combustion air 80mm
Outer pipe diameter, condensate 40mm
Seasonal space heating energy efficiency (Ns) 89.4%
Connection, fuel External thread
Nominal inner diameter for fuel 3/4 inch (20)
Gas consumption low-calorific natural gas (G25) 7.2m³/h
