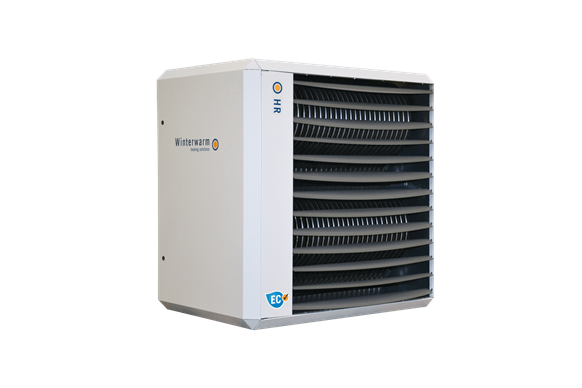

HR 100 EC
High effiency gas-fired warm air heater with EC fan, 100 kW
- Most environmentally-friendly heater
- High efficiency
- Economical and quiet EC fan
- Modulating burner and fan
- 10 years warranty on heat exchanger
Description
The HR 100-EC is a condensing air heater with low noise EC Fan. The unit has a capacity of 100 kW and an efficiency of approx. 106%. Both the pre-mix burner and system fan can modulate back to 30%. In combination with the Multitherm thermostat, these features ensure a constant and even temperature in the building.
More options
The HR 100-EC is suitable for natural gas or propane gas. The HR 100 EC is low noise , has an attractive design and ideally suited to installation in medium and large size commercial buildings as well in warehouses and industrial buildings.
Features
- modulating burner- and fan control for more comfort
- delta-T control optimizes gas consumption
- quiet and efficient EC fan as standard
- low electricity consumption
- compact and modern design
- tilt-mounted option - V-model (improved vertical heat distribution )
- suspension on ceiling or wall, by brackets or by threaded bar
- natural gas or propane
- integrated condensate siphon
- suitable for large industrial buildings
Technical features
| Nominal power | 96.8kW |
|---|---|
| Nominal load lower value | 100kW |
| Efficiency | 105% |
| Air volume | 8000m³/h - 13400m³/h |
| Max. throw horizontal | 30m |
| Max. throw vertical | 0m |
| Supply voltage | 230V |
| Nominal current | 5A |
| Max. electric power input | 950W |
| Max. sound level (at a distance of 4 metres) | 66dB(A) |
| Material heat exchanger | Stainless steel |
| Closed version | Yes |
| Burner controller high/low | No |
| Burner controller, modulating | Yes |
| Control signal on/off | Yes |
| Control signal 0-10 V | No |
| Fan type | Axial |
| Degree of protection (IP) | IP00B |
| Height | 1195mm |
| Width | 1115mm |
| Depth | 887mm |
| Weight | 195kg |
| Min. mounting height (horizontal air distribution) | 1.7m |
| Outer pipe diameter combustion air | 130mm |
| Outer pipe diameter condensate | 40mm |
| Seasonal space heating energy efficiency (Ns) | 89% |
| Connection, fuel | External thread |
| Nominal diameter fuel | 1 inch (25) |
| Gas consumption low-calorific natural gas (G25) | 12m³/h |
| Gas consumption propane (G31) | 8kg/h |
Images
Downloads
Accessories
Controls
Suspension
Other
Flue material
Service parts
View our service parts for the HR 100 EC (and earlier models) in the parts shop.
