ACM

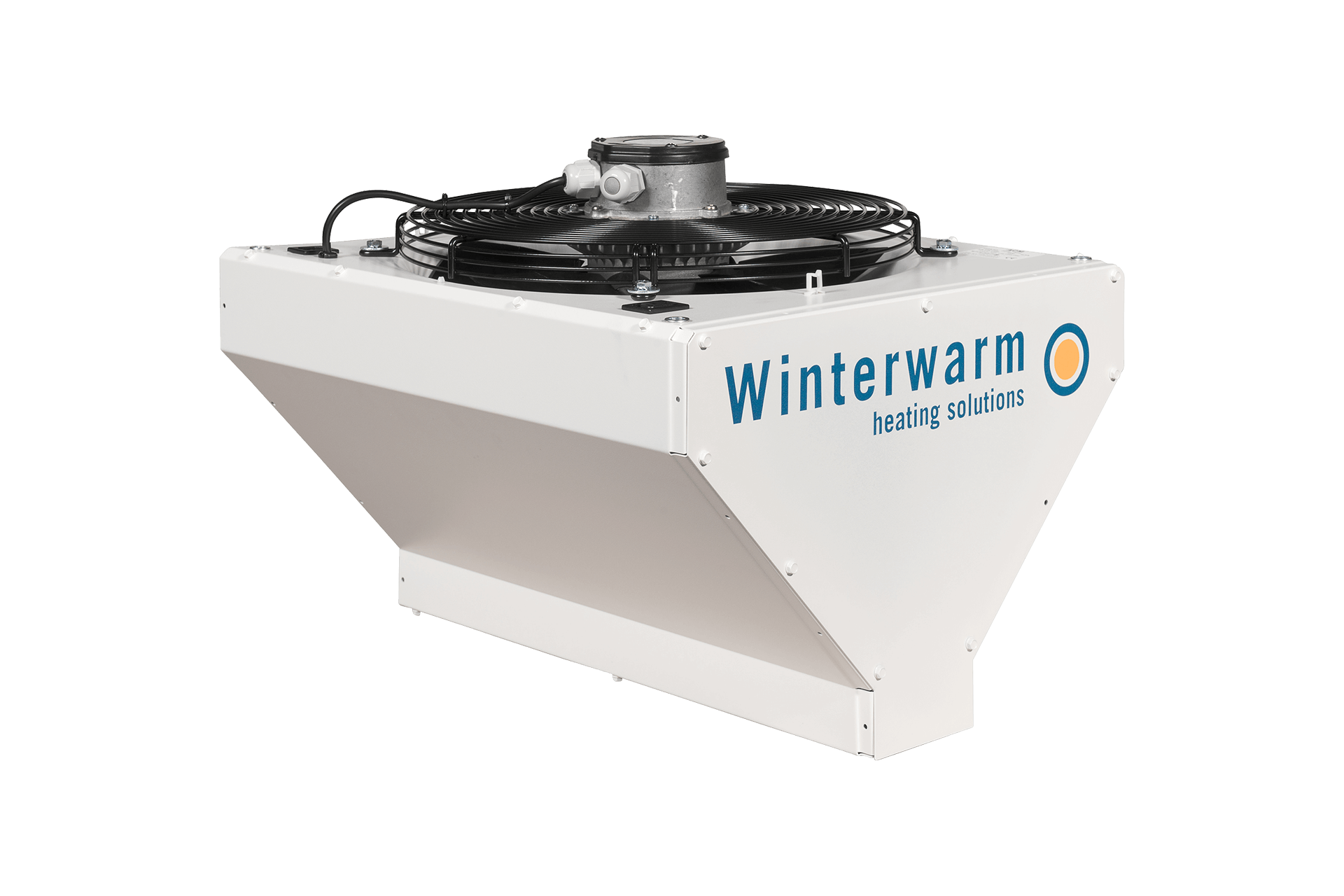

The ACM is a modular air curtain suitable for all door widths and is easy to assemble.
- High air flow
- Prevents heat loss
- Energy-saving
- Reduces drafts
- Fitted with a “Gurney” flap
Description
Each ACM module is 50 cm wide. The modules can be connected together up to the desired width of the door. The ACM is suitable for door heights of 2 to 4,5 meter. The louvres can be adjusted to achieve an optimal air flow.
Easy and flexible installation and control

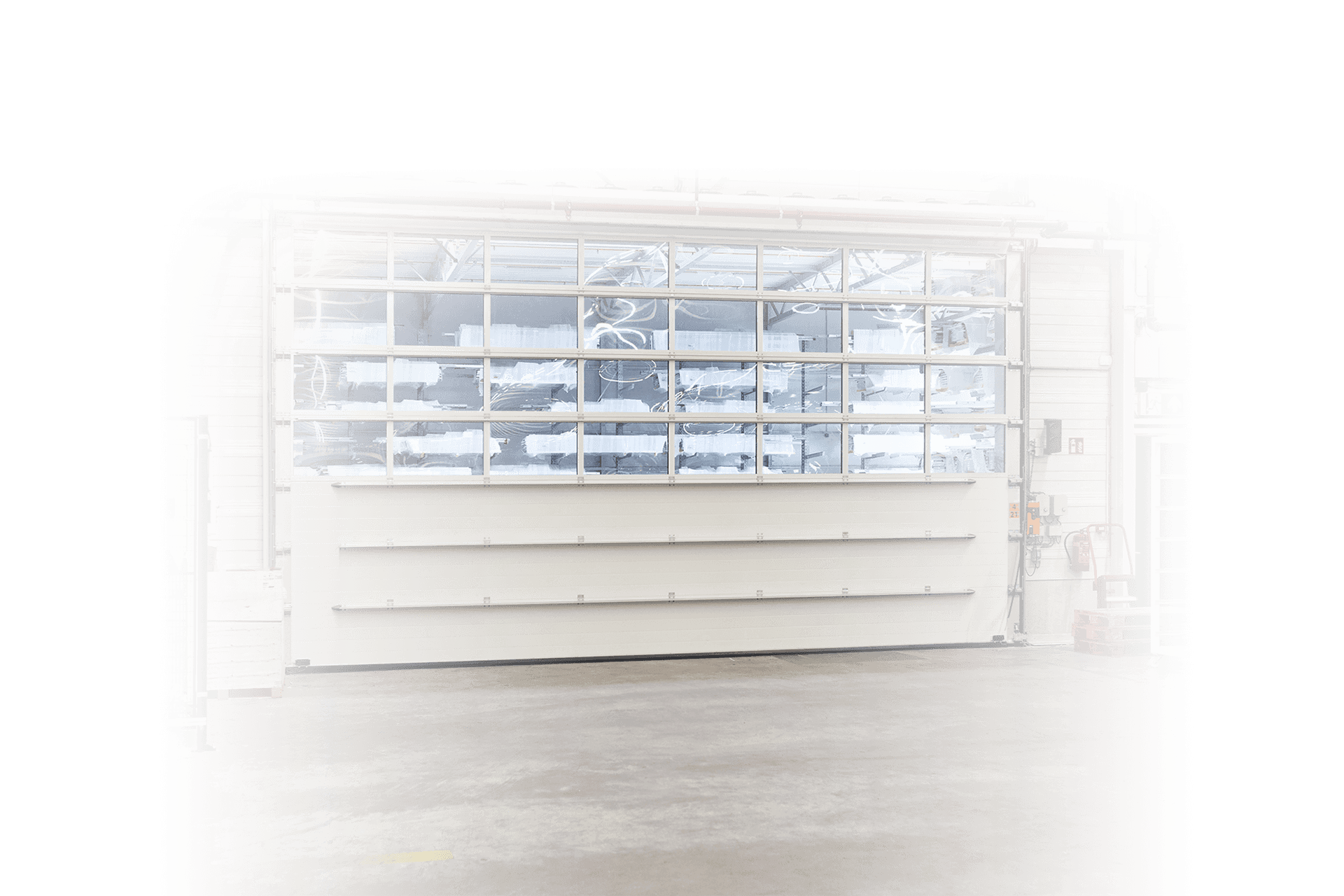

The ACM can be installed in front or at the back of an overhead door by using the mounting bracket up to a maximum of 10 modules. For doors wider than 5 m, extra suspension is required. Each air curtain requires an assembly set consisting of 2 end panels and a power plug.
We recommend using an on/off contact or door contact to activate the air curtain. Because of the quick reaction speed (appr. 3 sec.) the standard ACM is very suitable for high speed doors. With a 5-step switch one can adjust the air volume.
Features
- applicable for all doors up to 4.5 m. high
- unlimited length
- easy to assemble
- low weight
- 5-step control of air volume (optional)
- can be connected to a door switch
Technical features
| Max. mounting height (exhaust height) | 4.5m |
|---|---|
| Max. air volume | 1900m³/h |
| Number of fan settings | 1 |
| Outlet pattern | Adjustable |
| Connection voltage of fans | 230V |
| Max. input power fans | 0.23kW |
| Max. input current of fans | 1A |
| Width | 520mm |
| Height | 380mm |
| Depth | 437mm |
| Colour | White |
Images
Accessories
Controls
Suspension
Other
Service parts
View our service parts for the ACM (and earlier models) in the parts shop.
