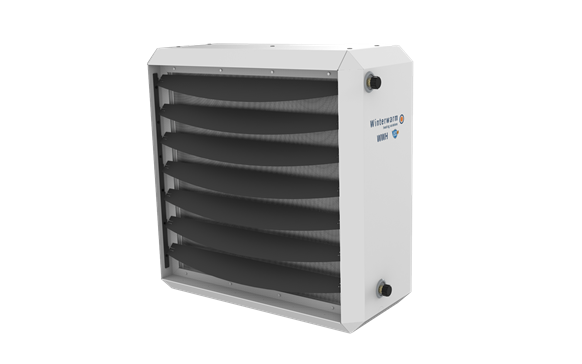

WWH 365 EC
LPHW warm air heater wth EC fan motor, 55 kW
- High comfort
- Reduced electricity consumption
- 0-10V control
- Low sound level
- Various discharge possibilities
Description
The WWH 365 EC is a water heater with a capacity of 54.4 kW at a water temperature of 90°/70°. The heat exchanger consists of a combination of copper tubes and aluminium fins which ensures optimum heat transfer.
The EC fan is about 25 % more efficient in terms of electrical consumption and is low noise compared to the standard WWH. It is a perfect solution in shops, showrooms , warehouses, industrial or any commercial buildings.
Features
- EC fan motor as standard
- low electricity consumption
- low sound leveld
- 0-10 V. stepless speed controller adjusts air volume
- applicable for all water temperatures
- horizontal or vertical air discharge
- extra louvres available
- 4-way down flow plenum for suspended ceilings
- long lifetime
Technical features
| Heat emission | 0kW - 54.4kW |
|---|---|
| Air volume | 0m³/h - 8500m³/h |
| Max. throw horizontal | 25m |
| Max. throw vertical | 8m |
| Connection voltage | 230V - 230V |
| Number of phases | 1 |
| Nominal current | 4.2A |
| Max. electric power input | 850W |
| Adjustable fins on exhaust side | Yes |
| Material heat exchanger | Aluminium/copper |
| Fan type | Axial |
| EC ventilator as standard | Yes |
| Sound pressure level at height of 5 metres | 0dB(A) - 56dB(A) |
| Height | 834mm |
| Width | 834mm |
| Depth | 530mm |
| Nominal diameter | 1 inch (25) |
| Water-side resistance at dT 20 °C | 7kPa |
| Max. operating pressure | 500kPa |
| Water content | 2.2l |
| Weight including filling | 61kg |
