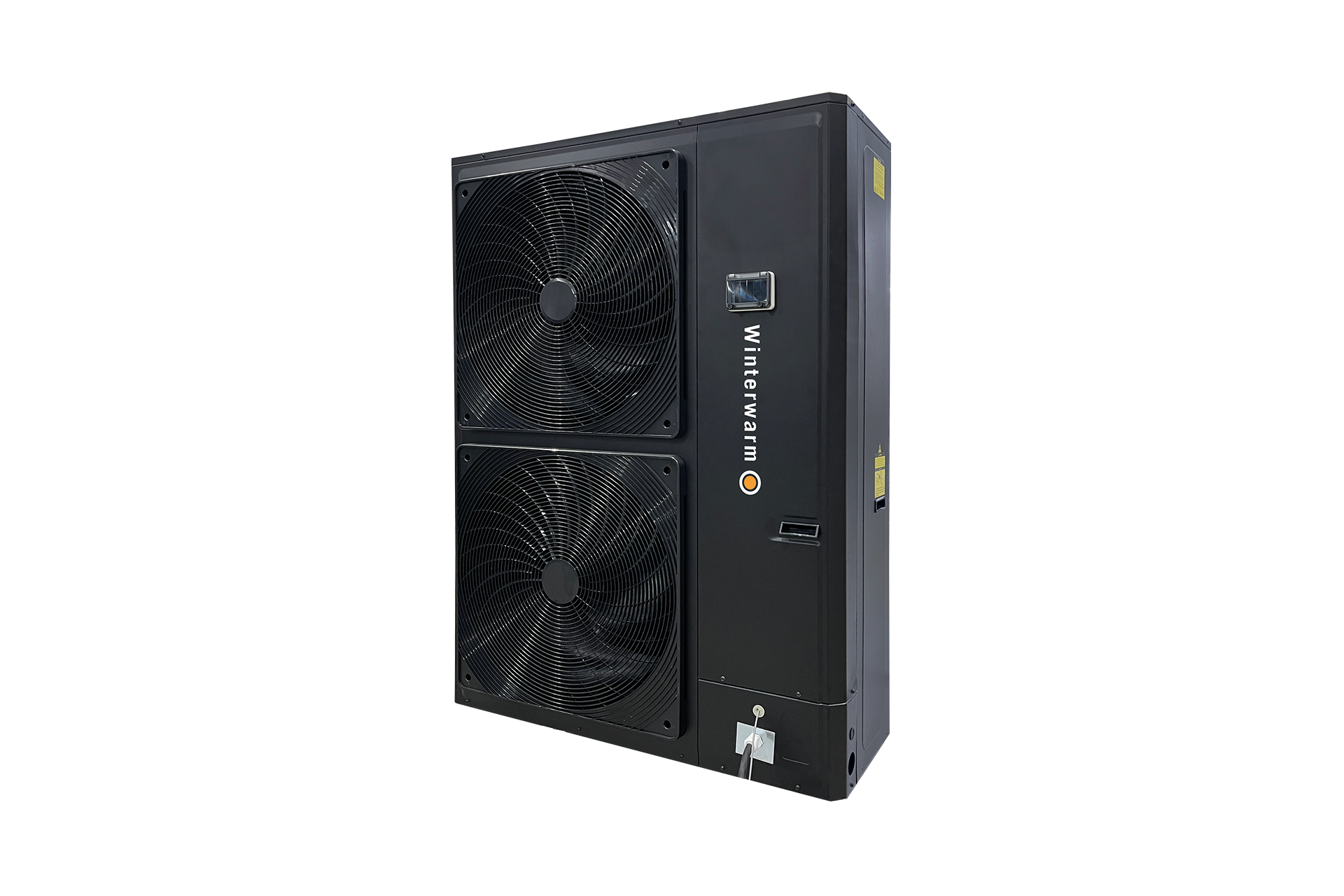

HPX 30
Monobloc heat pump, 30 kW
- High COP score: >5
- Energy class A***
- Air/water heat pump
- Environment friendly refrigerant
- DC-fan
Description

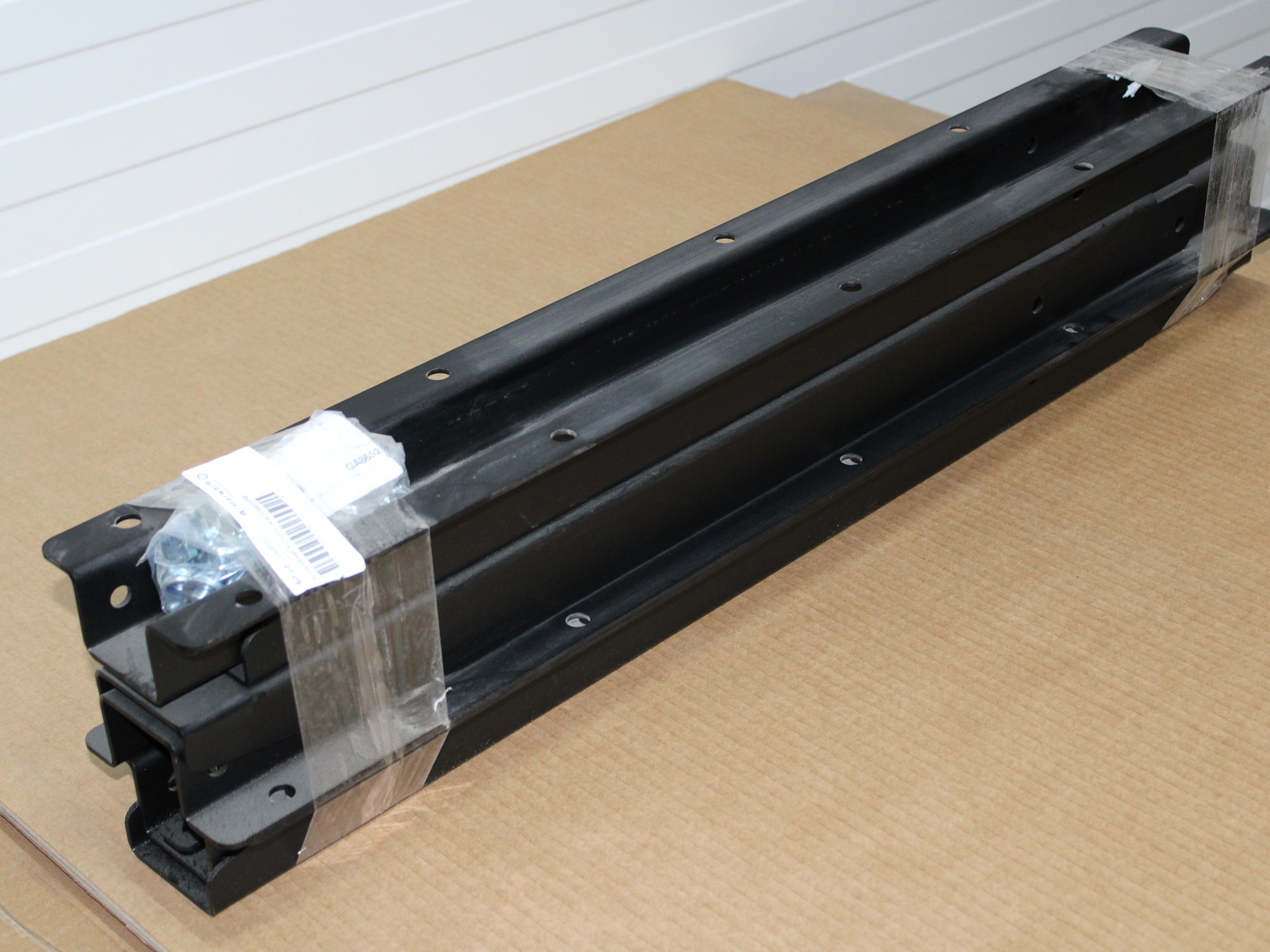

The Winterwarm HPX 30 is a heat pump with a heating capacity of 30 kW (at 7°/35°C) and a cooling capacity of 31 kW (at 35°/18°C). The appliance can be placed on the roof or be suspended on the wall. For this last option Winterwarm has fitting brackets available. The HPX 30 can be applied in combination with the Qwikshift QSG 30+60. In the inside unit a water coil is located as the heat release system ánd a heat booster (electric or gas fired). The latter "helps" the heat pump at the coldest moments of the year to reach the set temperature. The HPX 30 can also applied in combination with water heaters (LPHW) WWH-LT and JET heaters.
Features
- Built-in circulation pump
- Internal expansion tank
- Refrigerant R32
- Modulating compressor
- Water circulation filter included
Technical features
| Heating capacity at 7/35 °C according to EN 14511 | 30kW |
|---|---|
| COP at 7/35 °C according to EN 14511 | 4.35 |
| Cooling performance at 35/18 °C according to EN 14511 | 16.3kW - 31.2kW |
| Type of refrigerant | R32 |
| Refrigerant pre-charge | 5kg |
| Connection voltage | 400V - 400V |
| Number of phases | 3 |
| Frequency | 50 Hz |
| Weight | 287kg |
| Sound level (in operation) | 0dB(A) - 58dB(A) |
| External pressure system pump available at nominal flow | 4.8bar |
| Air temperature | -25°C - 35°C |
| Nominal volume flow rate output system | 1.43l/s |
| Degree of protection (IP) | IPX4 |
Images
Downloads
Service parts
View our service parts for the HPX 30 (and earlier models) in the parts shop.
Parts shopHPX Heat pump
The Winterwarm HPX heat pump, to be applied in combination with a Qwikshift Hybrid Heater or the WWH-LT range.
